Description:
Item type:RF To AV Receiver
Voltage range AC 110V-AC 240V
Video output: 1.0Vp-p 75Ω
RF input: -10dB<1KΩ
RF output: 75Ω unbalanced
VH band: AC 220V (maximum 200W)
Power:<6W
Function one: Input the wired signal
1, insert the cable line.
2, the device side av out and TV av in connection.
3, the TV option to av video mode, plug the power cord into the device by POWER boot, the host on the AUTO.
Function two: output video signal
1, AV cable connected to the device's AV IN interface, and the device transferred to the AV state.
2, and then turn the black lotus head RF cable to connect the device and the TV.
3, according to equipment configuration remote control cross key av mode button, the TV in the choice of RF channel search
Note: Guangdong Province, the purchase of this, the sound may not be compatible with the phenomenon, if you are Dongguan, please do not buy oh Oh, the current accurate and not easy to use (Baoan District, Shenzhen, Guangdong Longgang District, Taizhou Longping East Road Doumen District, Zhuhai (may) Hong Kong) If the other regions take the same time, then take the freight back and forth, a lot of television signals are picked up from Dongguan, are GB
In addition, there are identification methods, looking for a TV with a mode switch to try to know, if the TV switch to the DK mode sound is not normal is certainly not easy to use.
The rest of the continent is DK

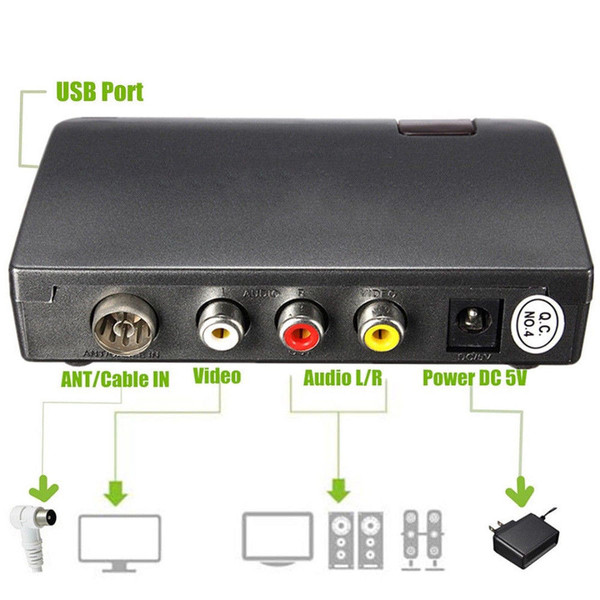

AV input and output ports, for all TV use.
50db ~ 100db <1KΩrRF Input 75Ω Unbalanced voltage range AC110V-AC240VrRF Output 75Ω Unbalanced VH band AC220V Output 200Wr Video output 1.0Vp-p 75Ω Total power consumption <6Wr For projectors, multimedia teaching, network engineering, etc.

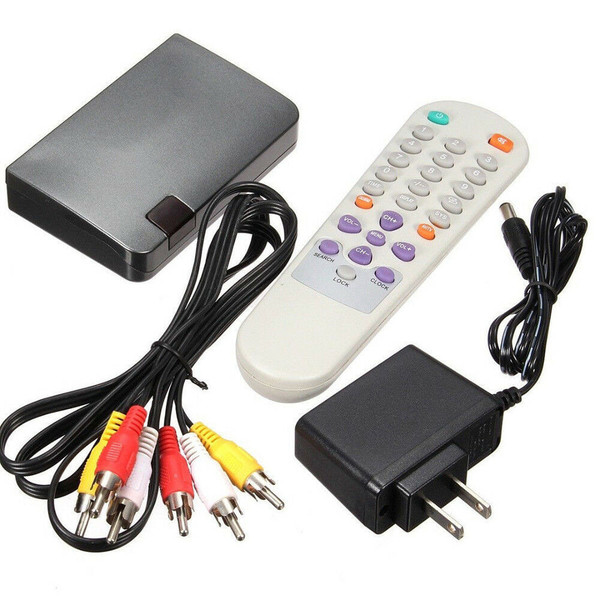

Package Include:
1x RF To AV Receiver
1x AV Cable
1x Power Adapter
