Description:

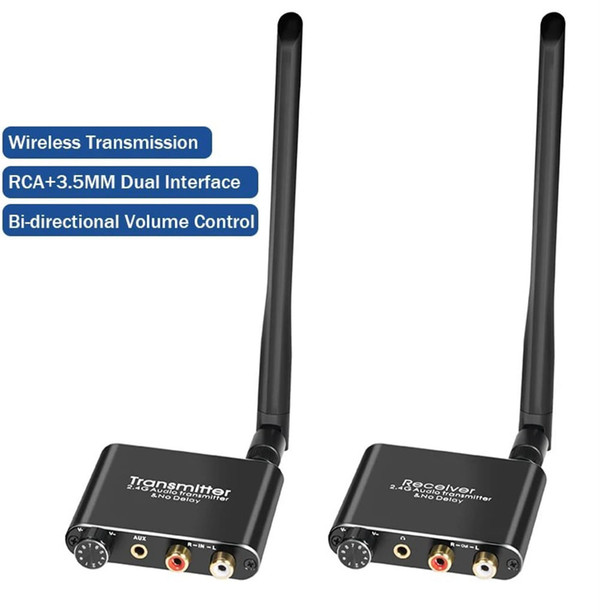

Name: Audio Adapter

Maximum Transmission Distance: 50 meters;

Receiver Power Consumption: 5V/45mA;

Transmitter Power Consumption: 5V/150mA;

Radio Frequency Frequency: 2400Mhz;

Transmitting Power: 14DB;

Signal-to-Noise Ratio: 67DB;

Frequency Response Range: 20HZ - 14.5KHZ;

Maximum Output Level: 1.75Vp-p;

Operating Temperature: -40~+85℃;

Storage Temperature: -60~+120℃;

Operating Humidity: -10~90%RH (non-condensing);

Storage Humidity: -5~95%RH (non-condensing);

Body Material: Aluminum Alloy;

Color: Black;

Transmitter Weight: 86g;

Receiver Weight: 86g;

Instructions for Use: 1. Connect the transmitter to power → Press and hold the transmitter button for 2 seconds → The Link indicator light flashes rapidly to enter pairing mode. 2. Connect the receiver to power → Press and hold the receiver button for 2 seconds → The Link indicator light flashes to enter pairing mode. 3. When the Link indicator light on the transmitter and the Link indicator light on the receiver stay on steadily, pairing is successful.

Packing list:

1 x transmitter

1 x receiver

2 x power adapter

1 x manual

1 x packing box
