Is Smart Device: No
Output Power: 90W
Dimensions: 168mm
Input Voltagle: 9-28V
Output Temperature: 50C-400 Celsius Degree
Temperature Stability: +/-2%
Certification: CE
Certification: FCC
Certification: RoHS
Model Number: TS101
Choice: yes
Original TS101 Soldering Iron Portable Adjustable Temperature Digital Solder Station Tip PD3.1 90W TS100 Upgrade
Main Features

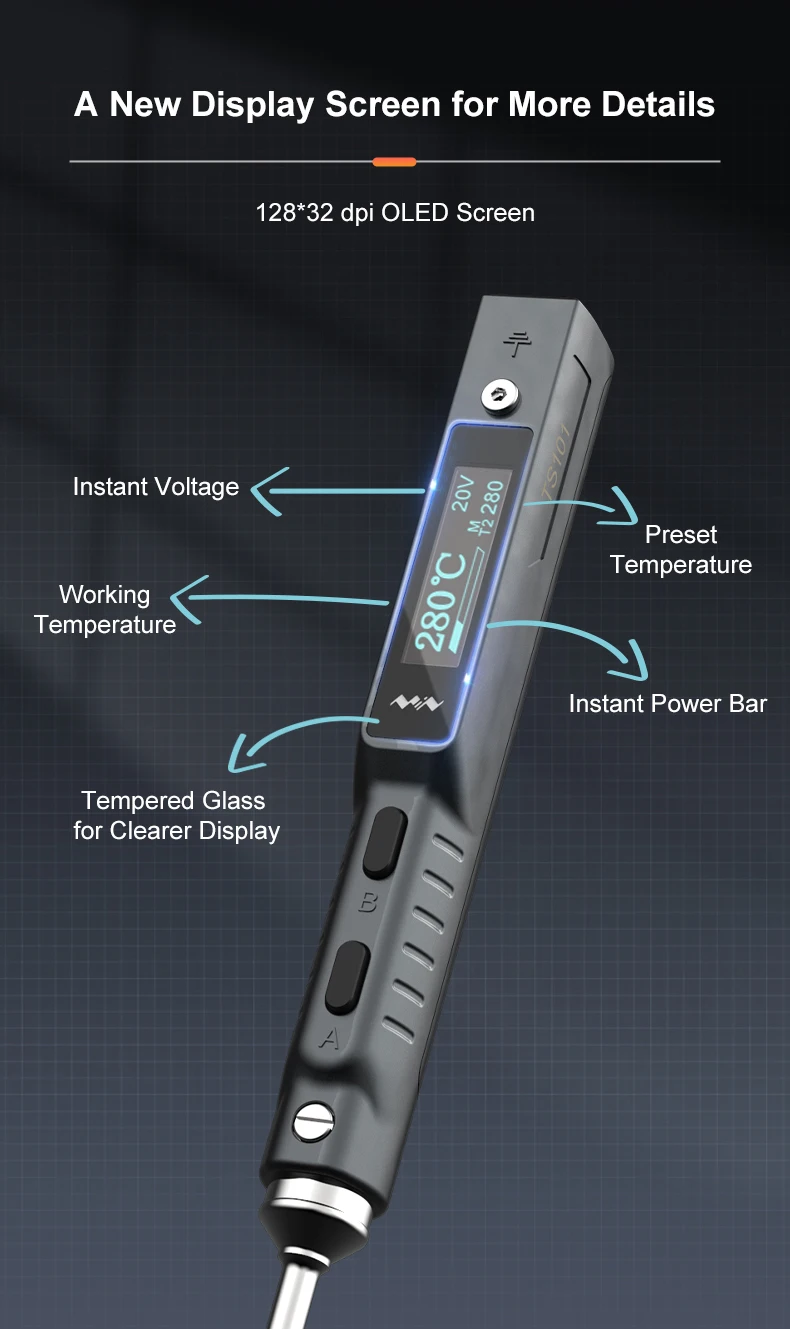

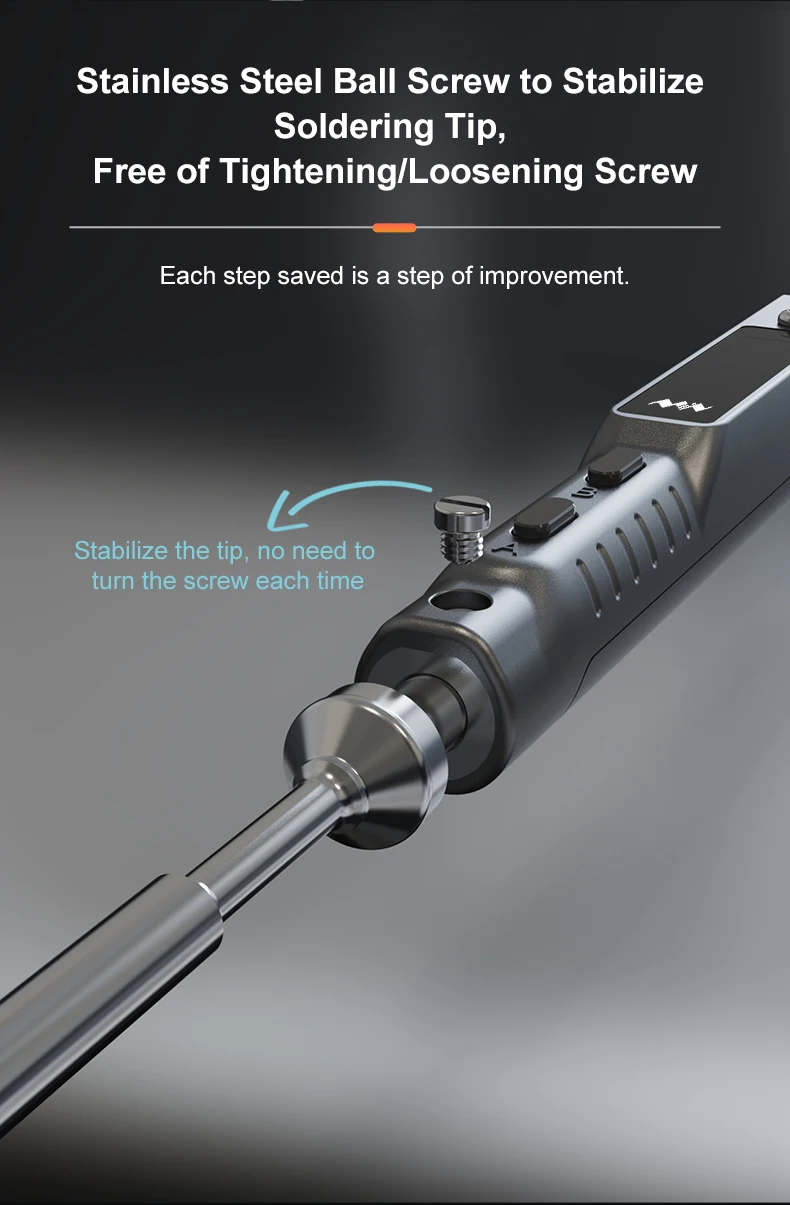

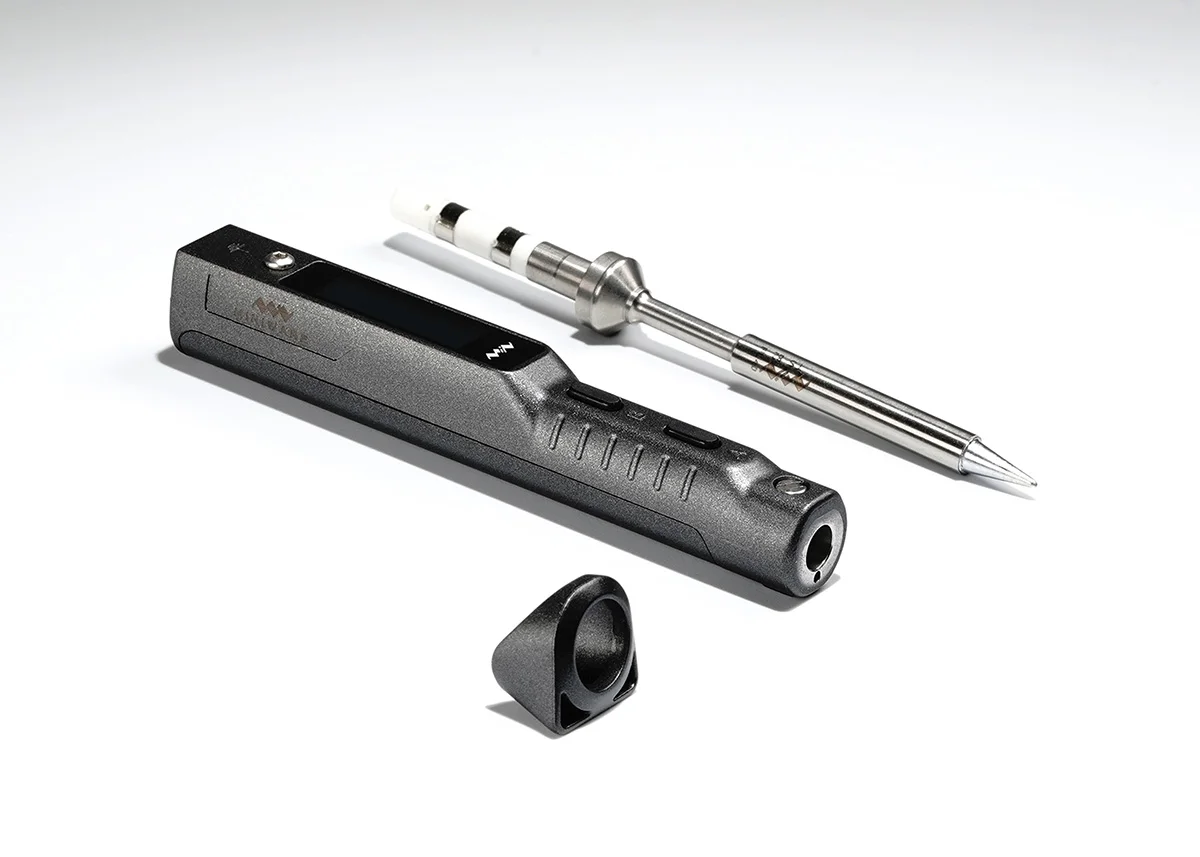

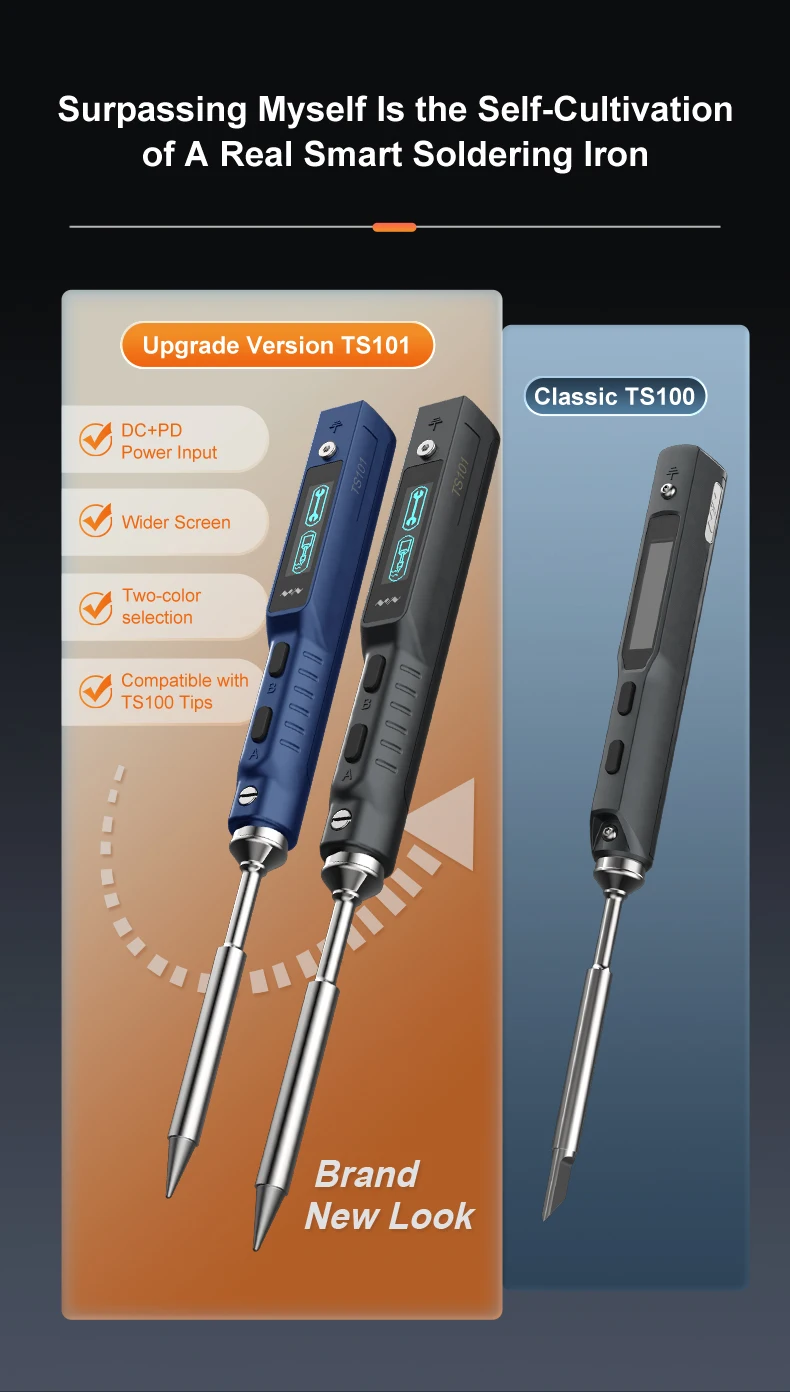

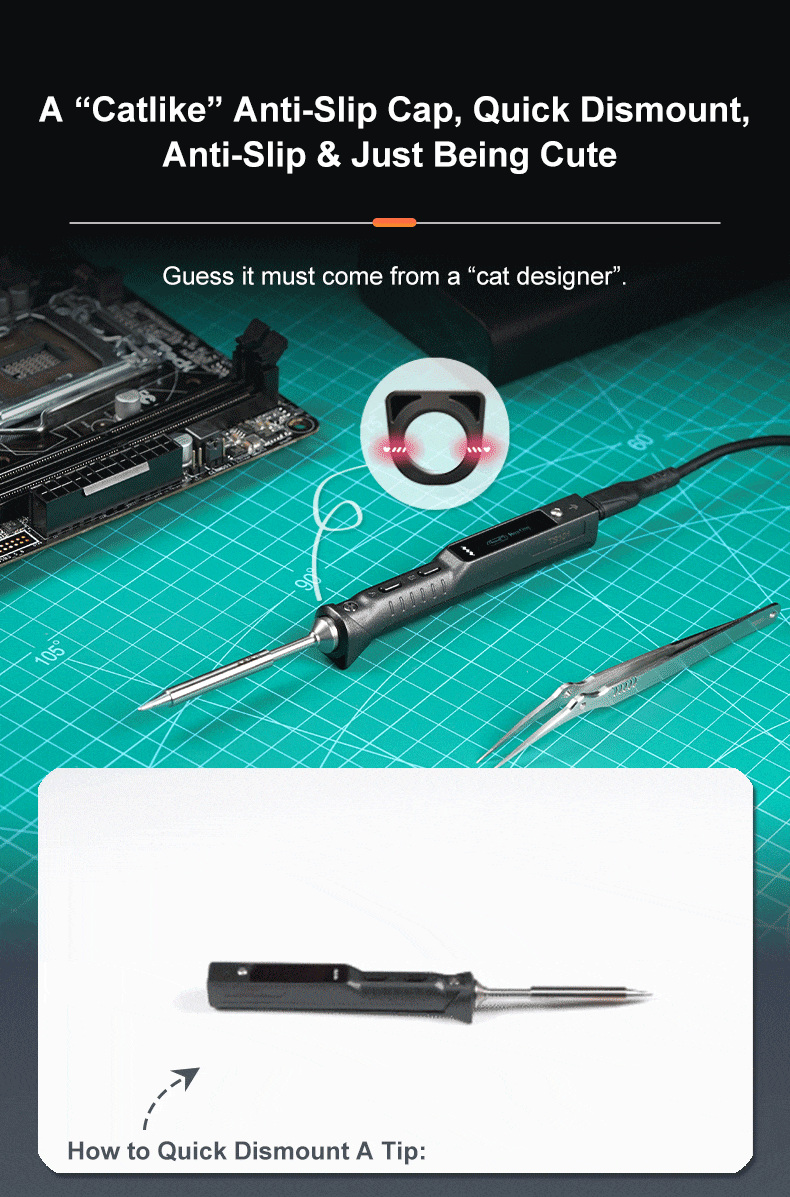

1) TS100 upgraded with more ergonomic appearance design: anti-slip plastic handle and pluggable ball-nut tip installation, larger led screen display more information

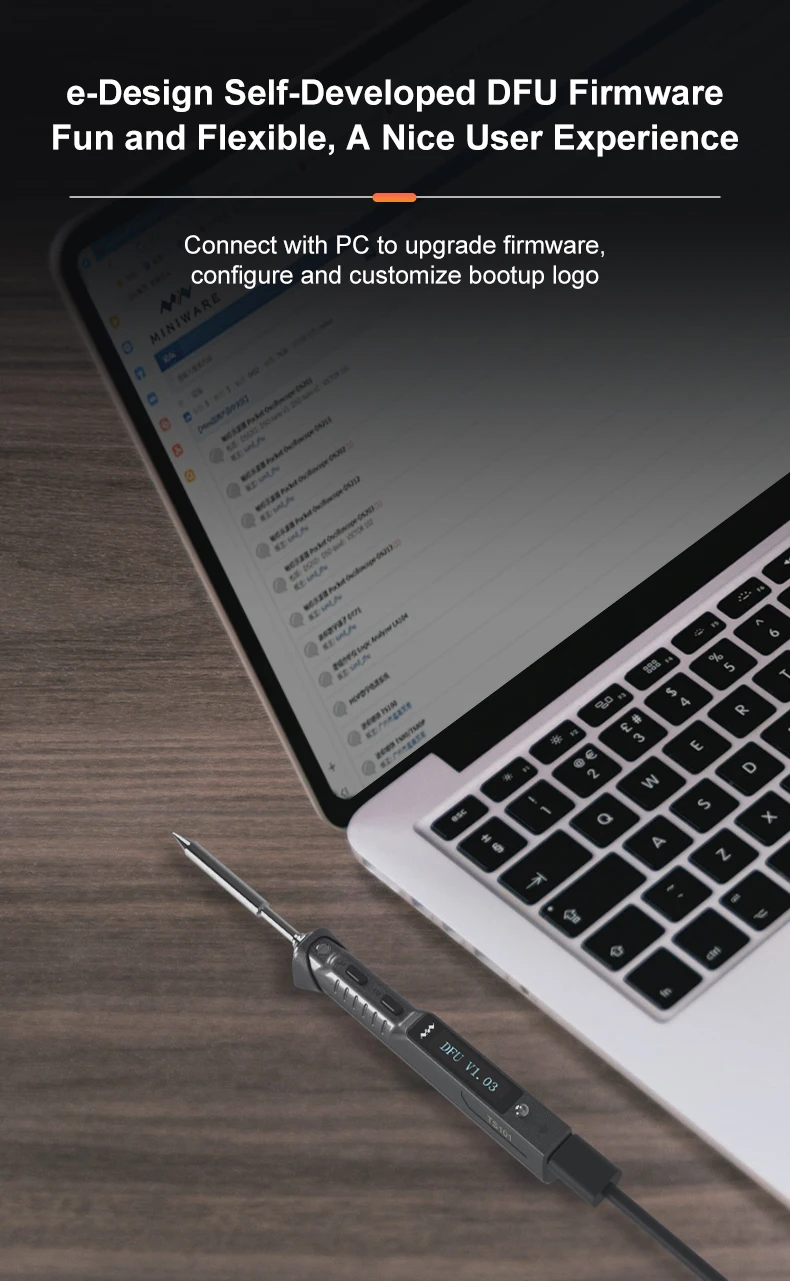

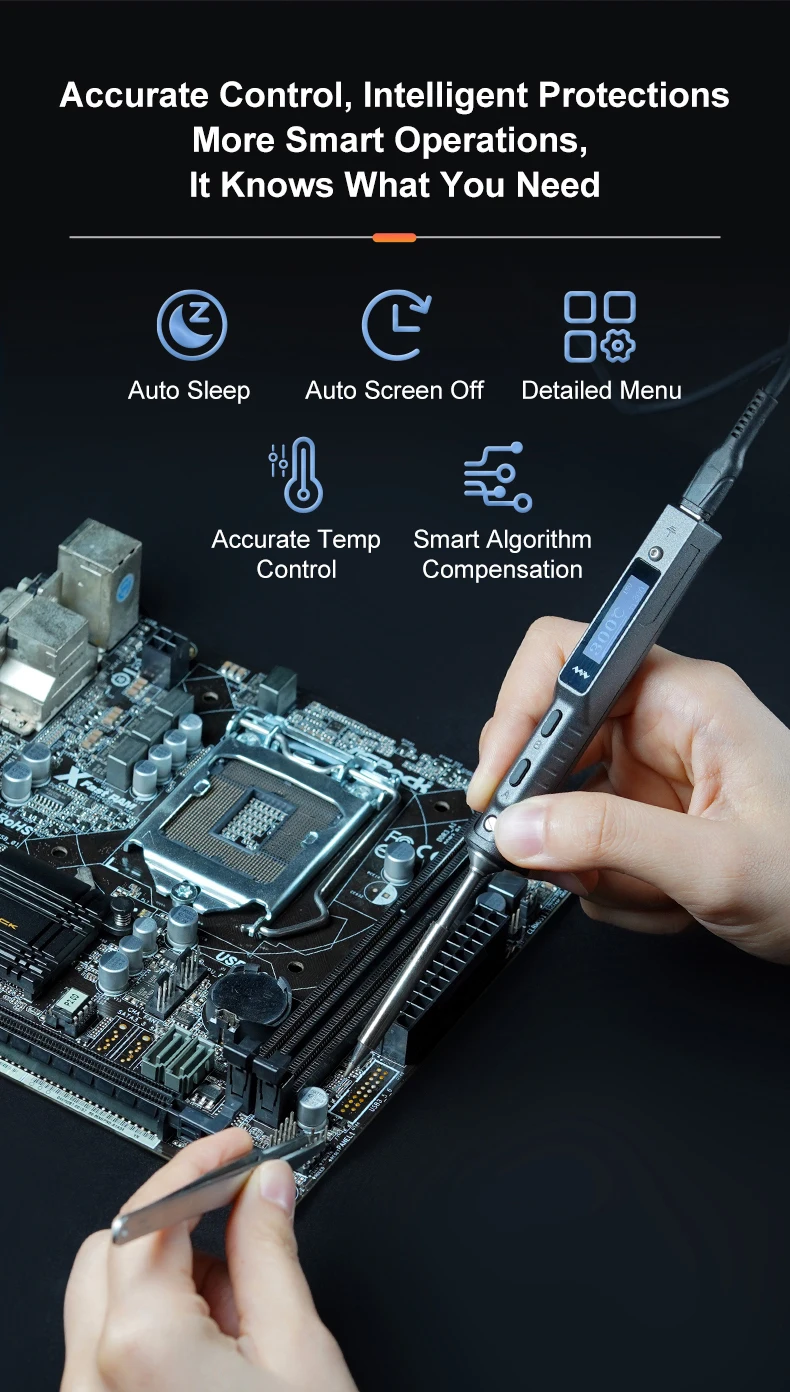

2) Embedded smart MCU processor chip to control soldering iron and monitor the soldering iron tip timely ensure stable heating temperature support auto sleep, auto stanby and intelligent temperature compensation and also support firmware update
3) Internal Heating design with dual temperature sensor and acceleration extreme cooperate ensure fast heating speed,reach the set the temperature only few seconds

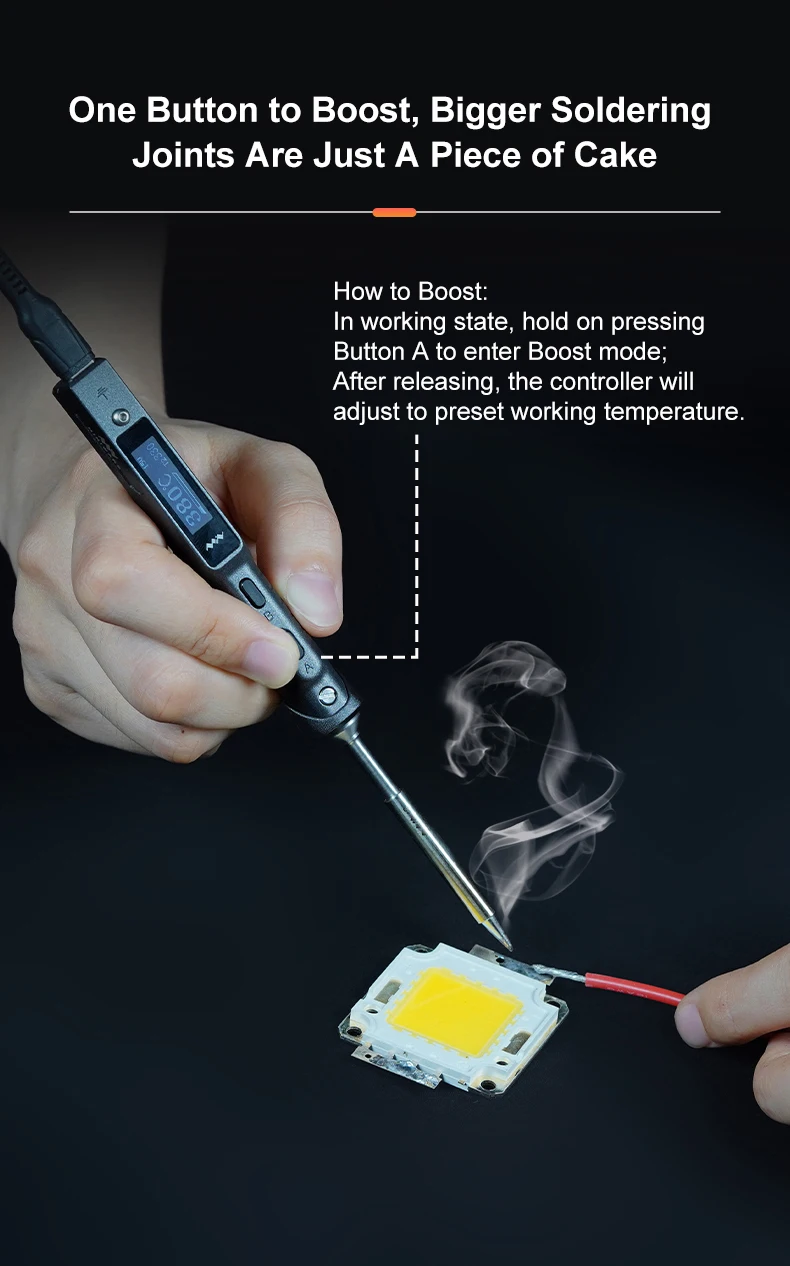

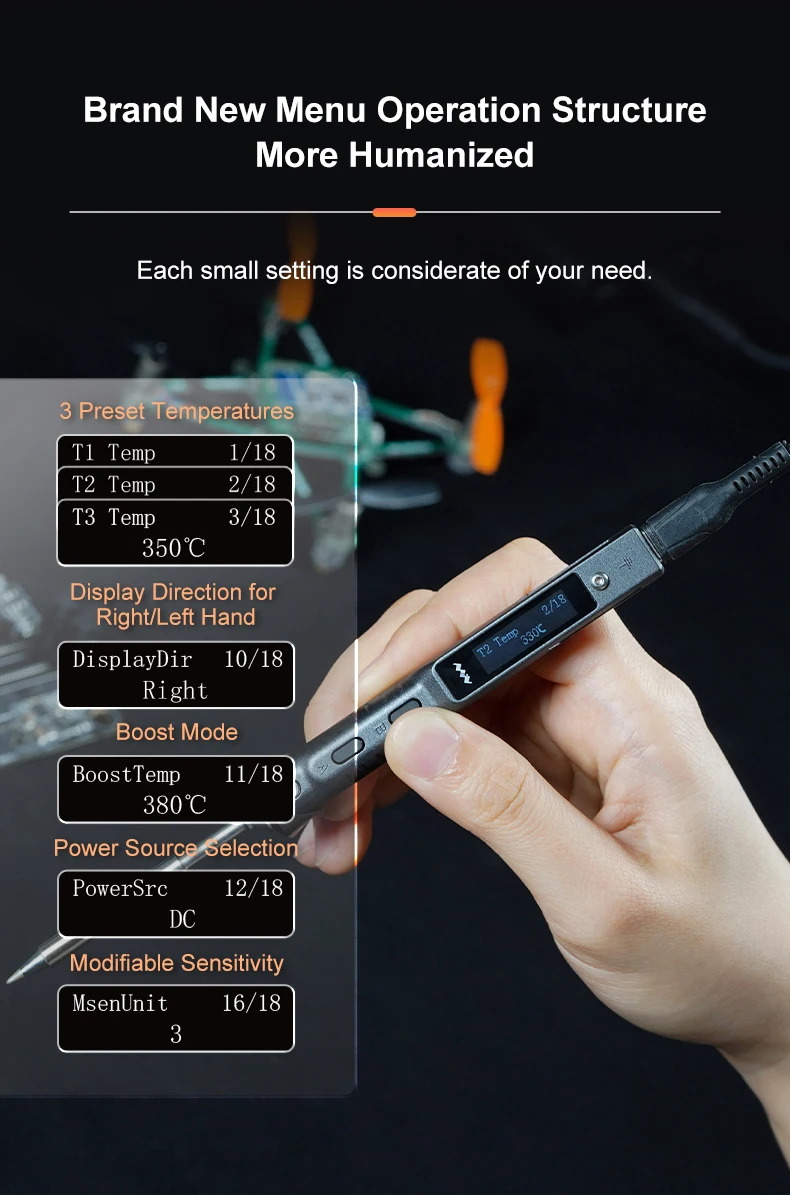

4) Support 3 group default heating temperature and one key turbo boost heating mode to speed up your soldering project and save time

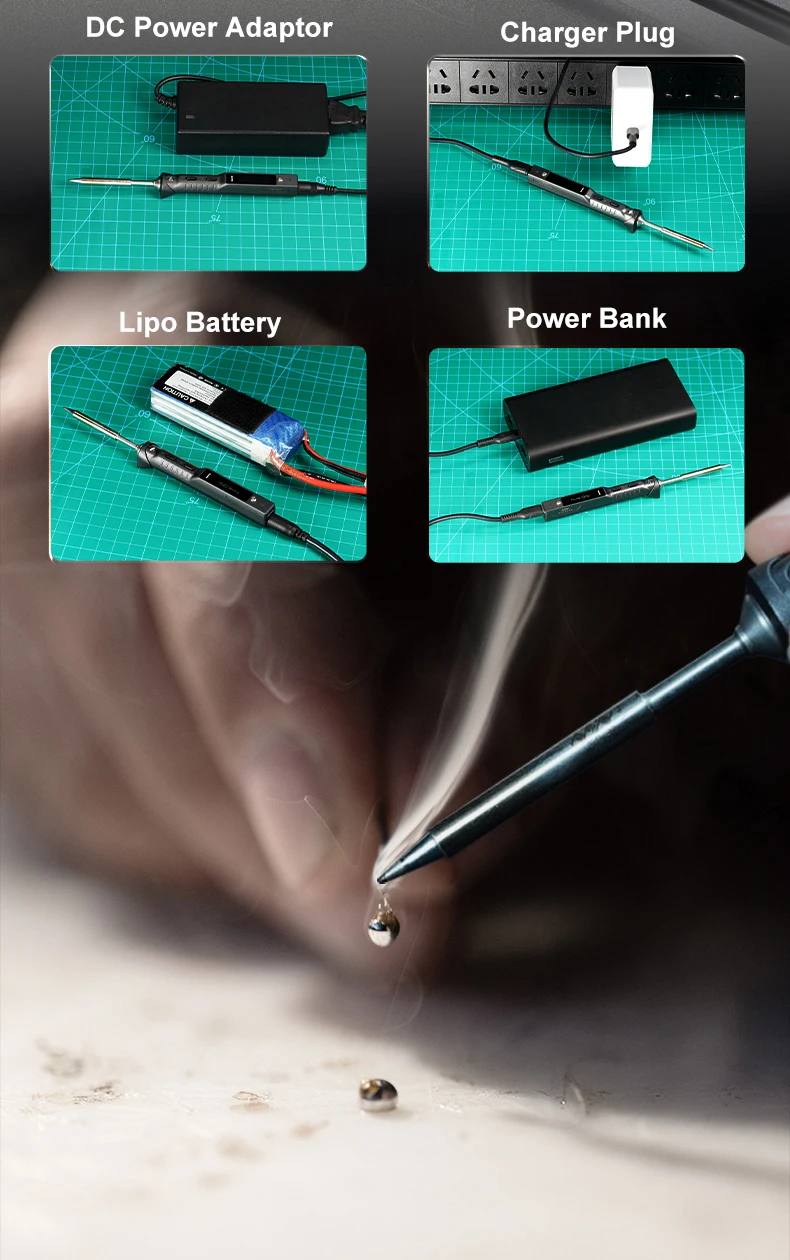

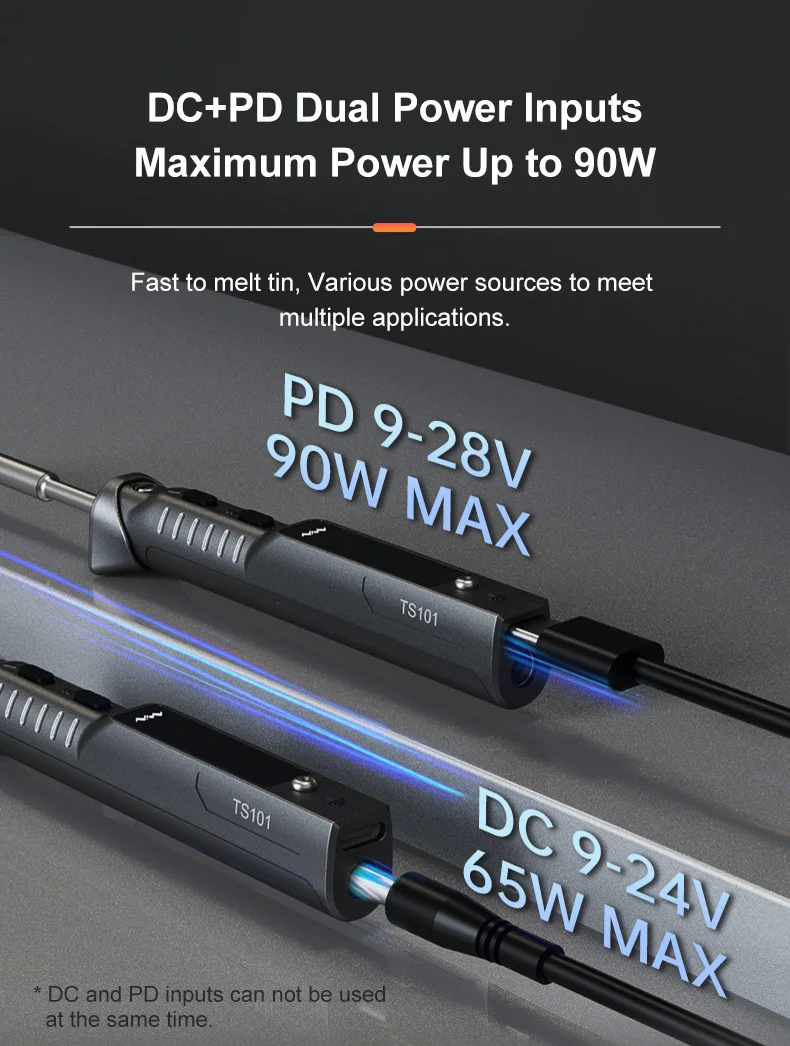

5) 9V-24 low working voltage with DC5525 and USB Type C dual power jack support DC 9-24V and PD3.1 9V-28V power supply which can be powered by laptop power supply, the power bank or smart phone quick power charger directly
6) Comes with soft silicone rubber USB type C cable with high temperature resistance
7) Compact size with pen shape design and only 33g light weight easy to handle and carry

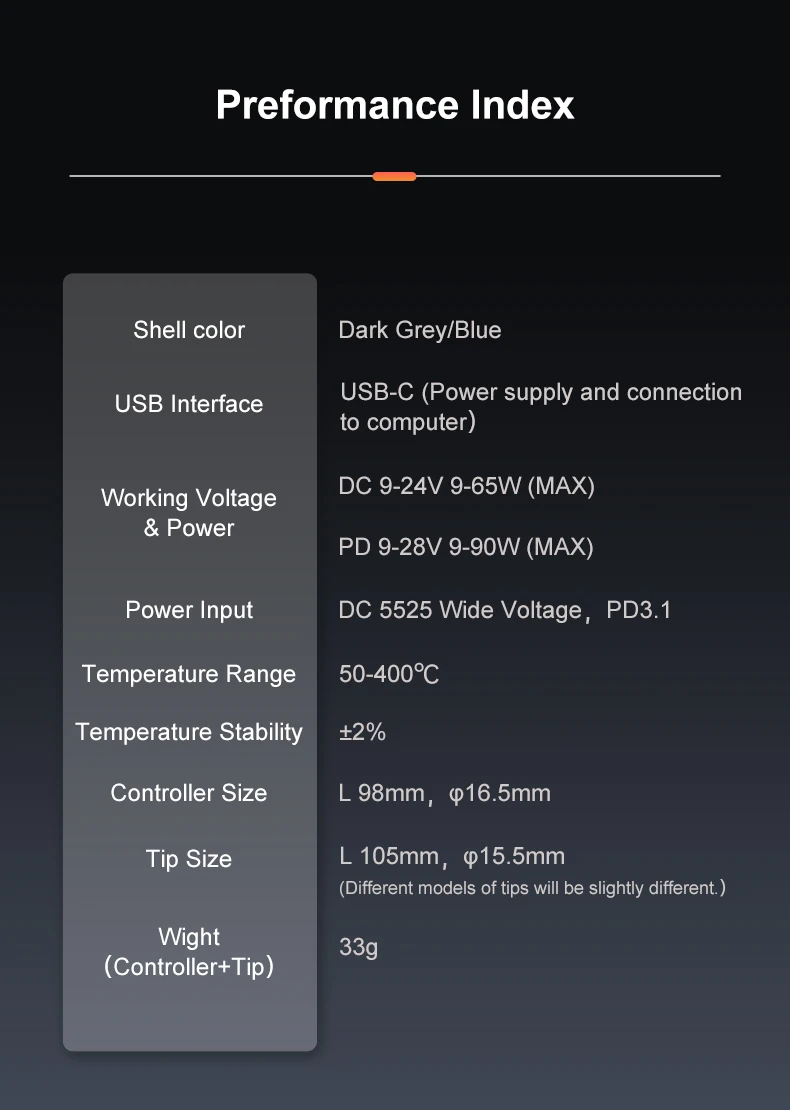

 Specifications
-Model: TS101
-Max. Ouput Power: 65W(DC), 90W(PD)*
-Input Voltage: DC9-24V, PD3.1Â 9-28V

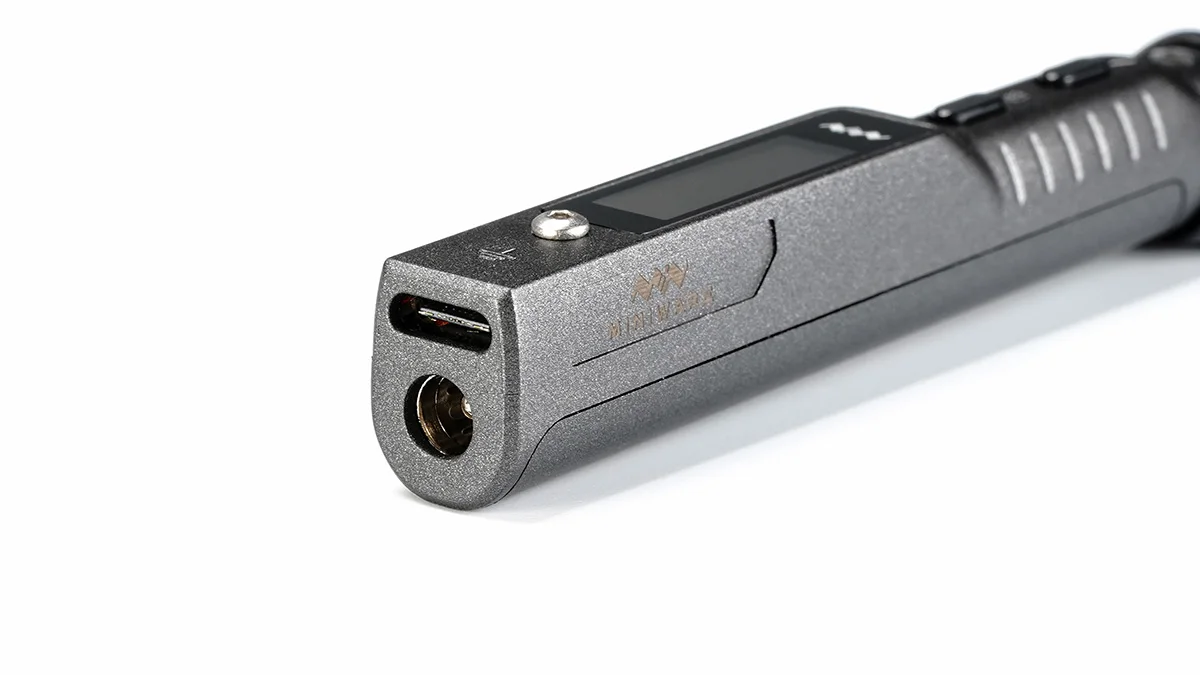

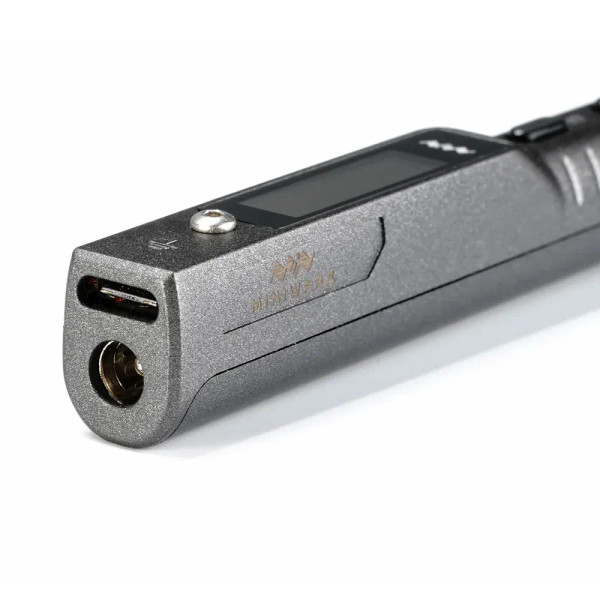

-Power Jack: DC5.5*2.5, USB Type C
-Temperature Heating Adjustable Range: 50C-400C/122F -752F
-Temperature Stability Range: +/-2%
-Soldering Iron Handle Size:16.8X95mm(D*L)
-Soldering Iron Tip Size: 15.5X105mm(D*L, TS-B2)

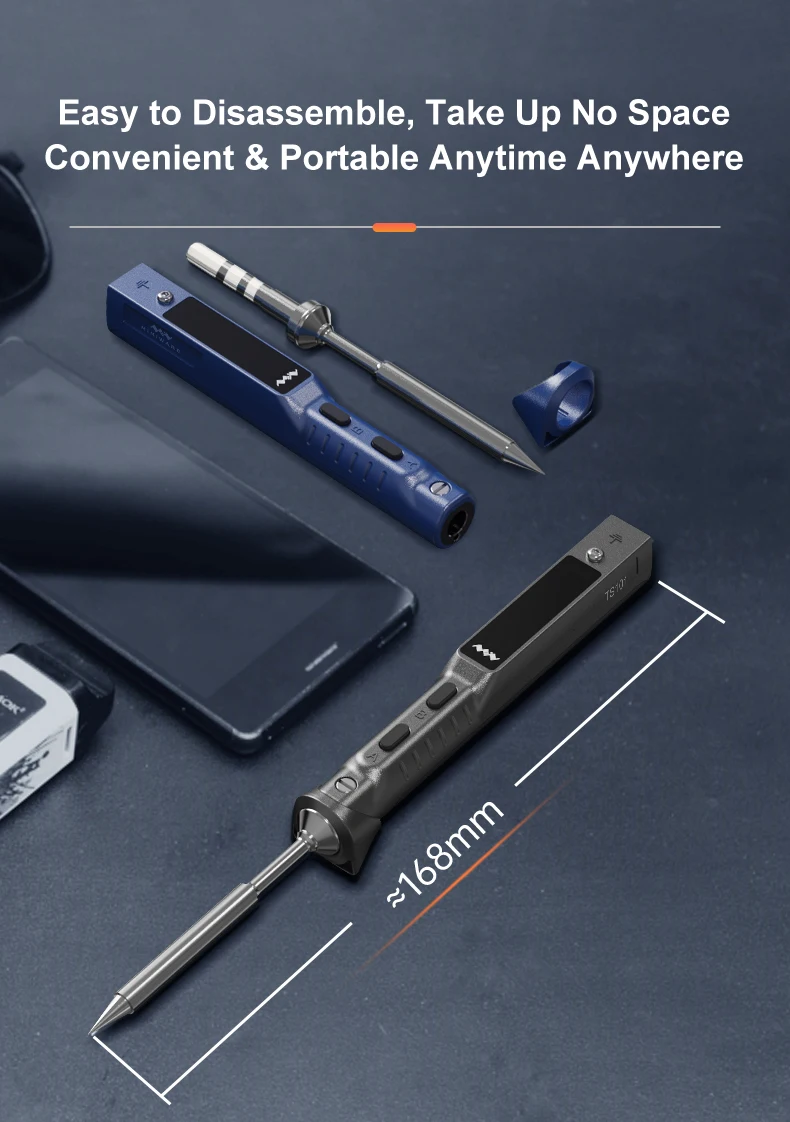

-Overall Length:168mm(tip installed)
-Net Weight:33g

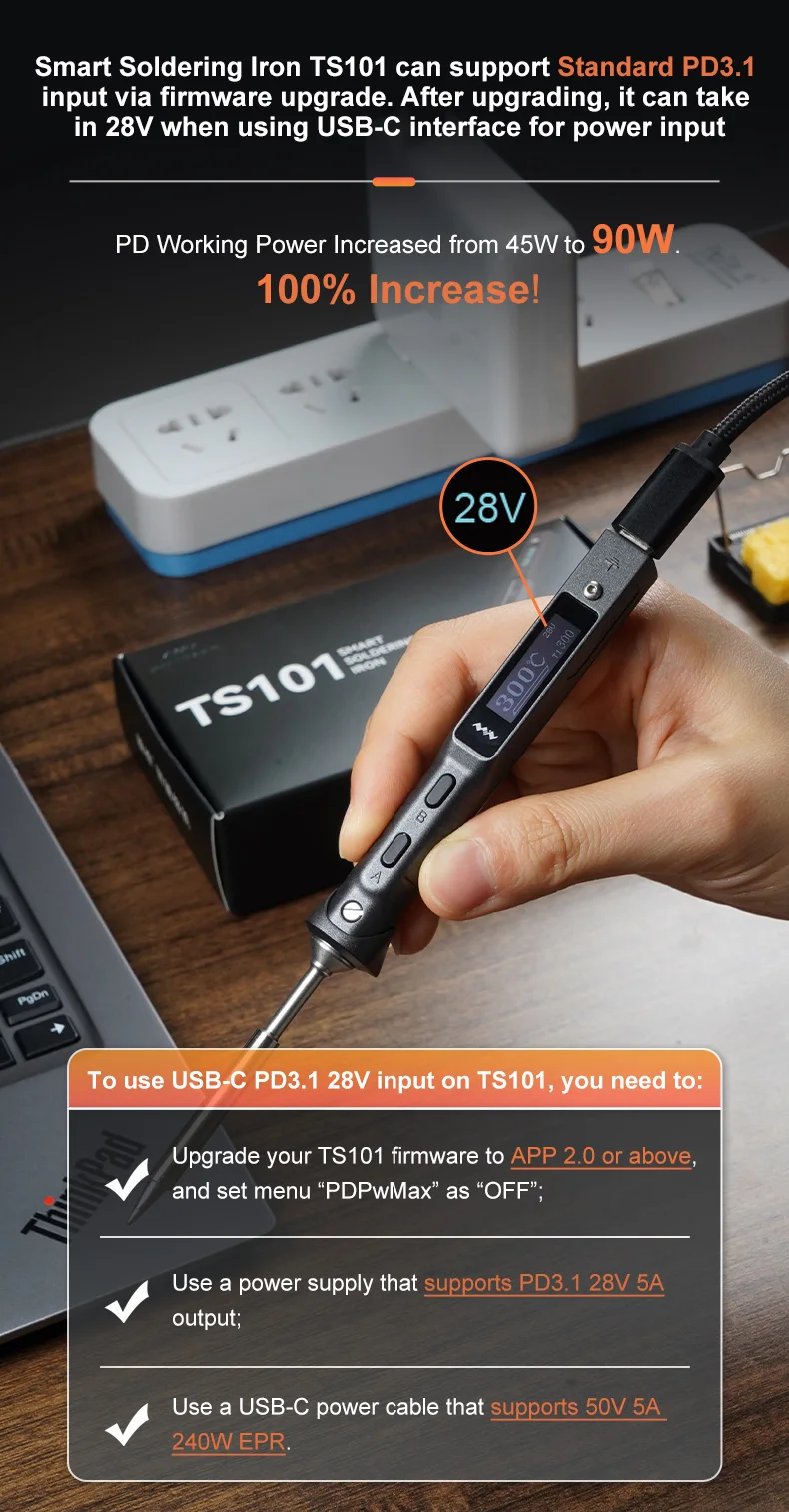

*For this voltage level, please use a PD3.1 28V power supply and a USB-C power cable supporting 50V 5A 240W EPR At the same time, set menu PDP wmax as off.

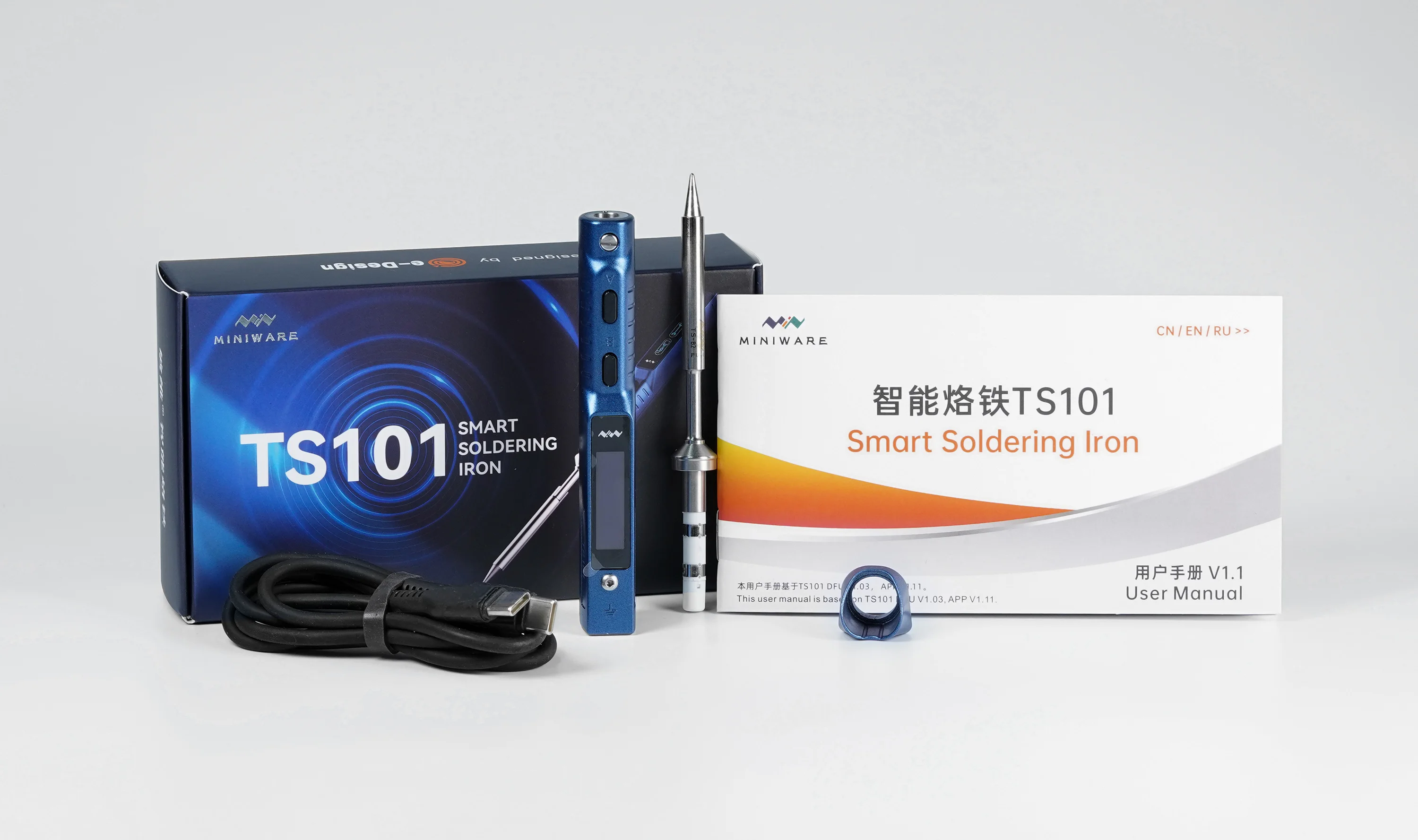

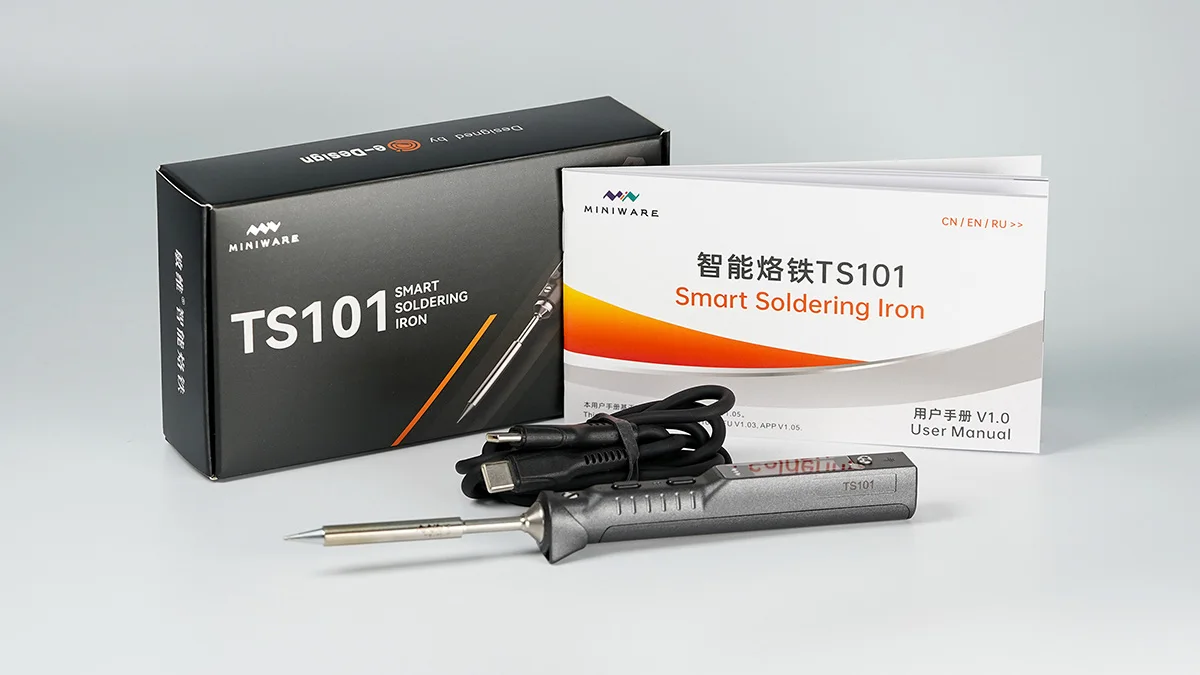

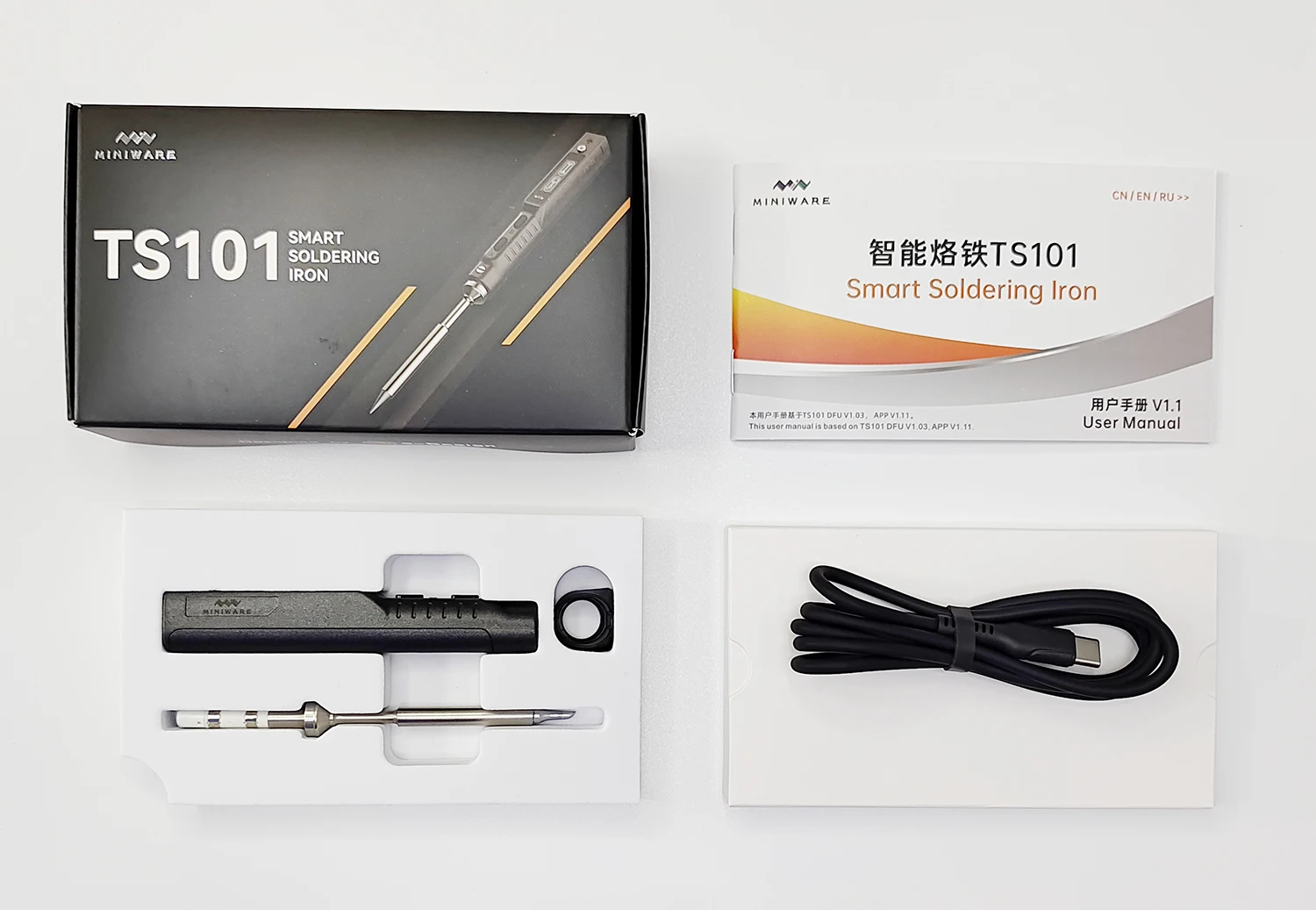

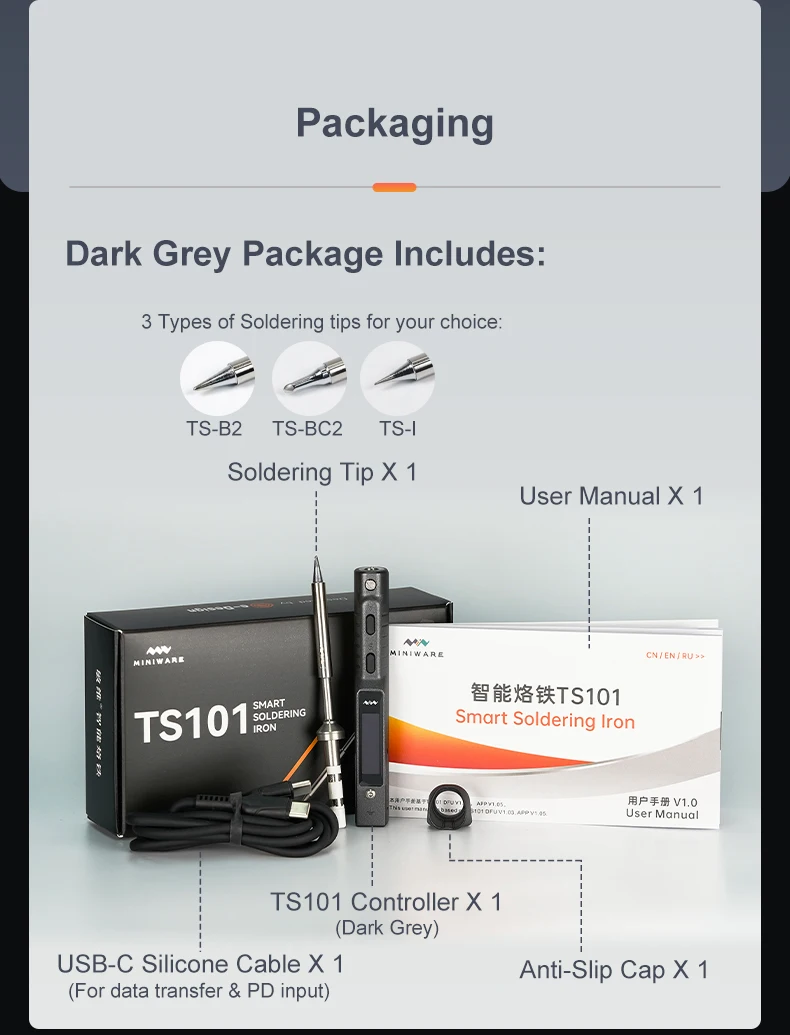

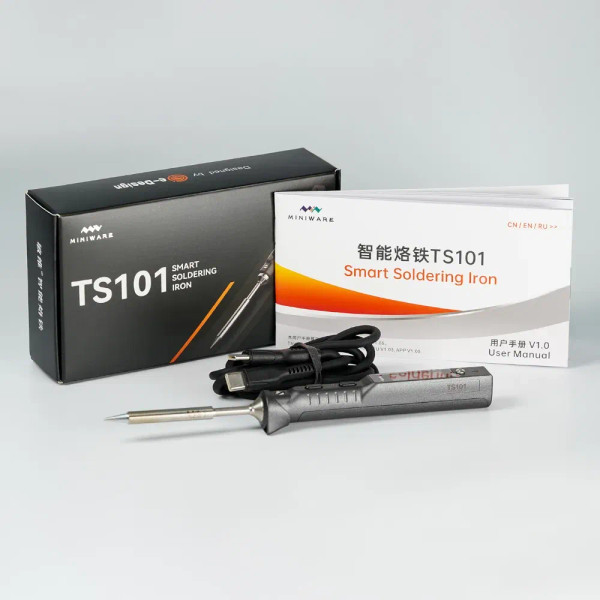

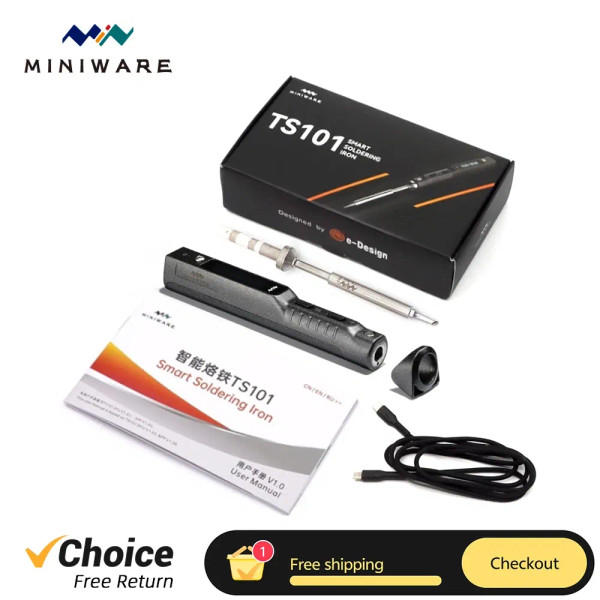

1. Original TS-BC2 Gray | Â TS101 Controller Gray*1 Â Anti-Slip Cap*1 Â User Manual*1 |

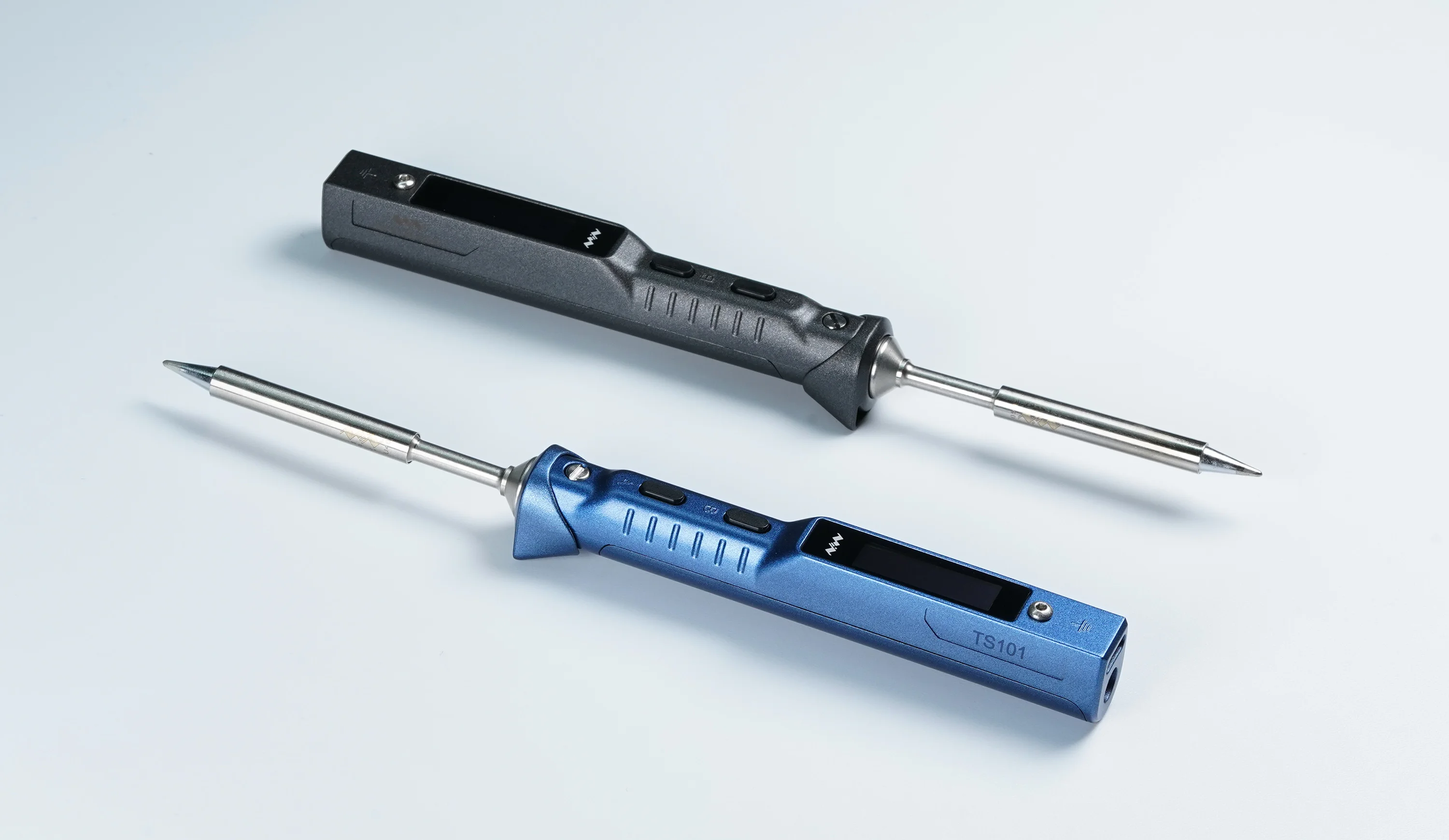

2. Original TS-BC2 Blue | Â TS101 Controller Blue*1 Soldering Tip BC2 *1Â Â Anti-Slip Cap*1 USB-C Silicone Cable*1Â Â User Manual*1 |
Product details
